电源模块PSD1000系列

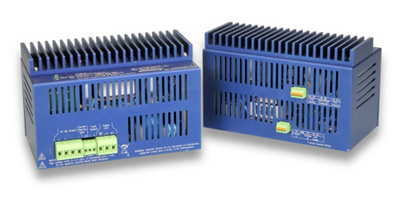

PSD1206

Name: Division 2 24V-6A Power Supply, SIL 2, SIL 3
Type: Power Supply
Supply: 90-264 Vac/Vdc
Field device:
Channels: 1
Description: The PSD1206 provides a stabilized, adjustable and isolated output to supply process control equipment installed in Div. 2 (Zone 2) Hazardous Location. Isolation (2KV) is provided between input, output & ground. The module output (24V-6A) can be paralleled for redundancy in share loading mode. Approved for Div. 2 installation.
Hazardous area: For installation in Zone 2 - Div. 2 Category 3 IIC T4 24 V, 6 A, 150 W
Safe area: Units can be paralleled with load sharing
Features:
  • Adjustable output.
  • 0.1% output stability.
  • Parallel-able output.
  • Load sharing.
  • Fault alarm relay.

PSD1210

Name: Division 2 24V-10A Power Supply, SIL 2, SIL 3
Type: Power Supply
Supply: 90-264 Vac/Vdc
Field device:
Channels: 1
Description: The PSD1210 provides a stabilized, adjustable and isolated output to supply process control equipment installed in Div. 2 (Zone 2) Hazardous Location. Isolation (2KV) is provided between input, output & ground. The module output (24V-10A) can be paralleled for redundancy in share loading mode. Approved for Div. 2 installation.
Hazardous area: For installation in Zone 2 - Div. 2 Category 3 IIC T4 24 V, 10 A, 250 W
Safe area: Unit can be paralleled with load sharing
Features:
  • Adjustable output.
  • 0.1% output stability.
  • Parallel-able output.
  • Load sharing.
  • Fault alarm relay.
